API Metal Couplings for Oil Well Casings and tubings

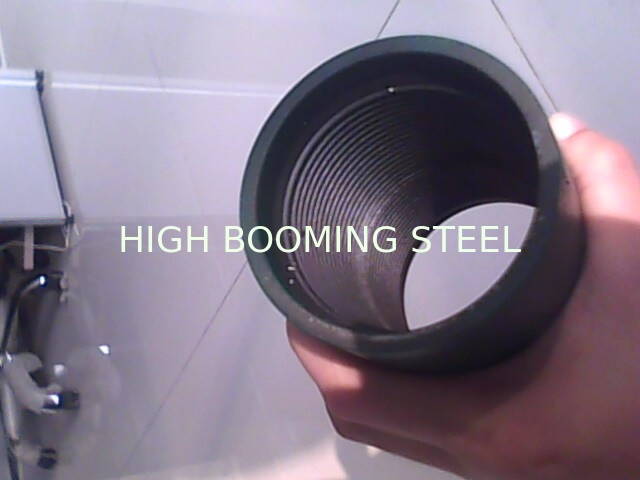

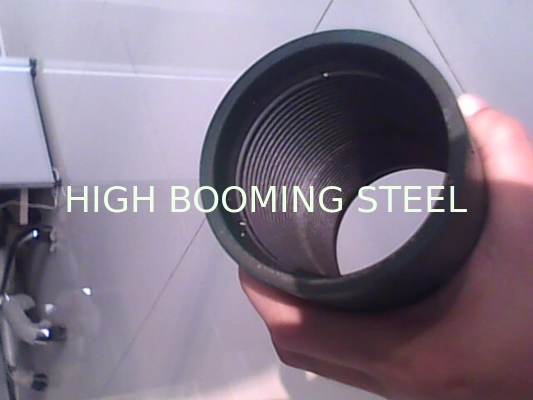

Large Image : API Metal Couplings for Oil Well Casings and tubings

Product Details:

Place of Origin:	China
Brand Name:	Huibo
Certification:	API 5CT,

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	in bundles or in bulk
Delivery Time:	15-25days
Payment Terms:	TT/LC
Supply Ability:	5000MT/MONTH

Contact Now

Detailed Product Description

Secondary Or Not:	Non-secondary	Application:	Oil Pipe
Technique:	Hot Rolled	Surface Treatment:	Anti-rust Coating
Alloy Or Not:	Is Alloy

The API metal coupling is an internally threaded cylinder for connecting two threaded pipes. It is an integral part of the tubing and casing. Each tubing or casing should be equipped with an API coupling. The casing with different thread types selects different types of this fitting. Therefore, the product is mainly divided into buttress thread and round thread types, which correspond to buttress and round thread casing respectively.
Specifications
1. Steel grade
J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr, C90, T95, P110, Q125, etc.
2. Outside diameter
Tubing coupling: 2 3/8", 2 7/8", 3 1/2", 4", 4 1/2"
Casing coupling: 4 1/2", 5", 5 1/2", 6 5/8", 7", 7 5/8", 9 5/8", 10 3/4", 13 3/8", 16", 18 5/8", 20"
3. Thread type
Long round thread(LC), short round thread(SC), buttress thread(BC), special thread, etc.

The API couplings for tubing and casing pipes

Size and Specifications For Tubing and Casing Couplings
Descriptions and size		Type of Thread	O.D*L (mm)	Weight (kg)
Tubing Coupling	1.050	NUE	33.35*80.96	0.23
	1.050	EUE	42.16*82.55	0.38
	1.315	NUE	42.16*82.55	0.38
	1.315	EUE	48.26*88.90	0.57
	1.660	NUE	52.17*88.90	0.59
	1.660	EUE	58.88*95.25	0.68
	1.900	NUE	55.88*95.25	0.56
	1.900	EUE	63.50*98.42	0.84
	2-3/8"	NUE	73.02*107.95	1.28
	2-3/8"	EUE	77.80*132.82	1.55
	2-7/8"	NUE	88.90*130.18	2.34
	2-7/8"	EUE	93.17*133.35	2.40
	3-1/2"	NUE	107.95*142.88	3.71
	3-1/2"	EUE	114.30*146.05	4.10
	4"	NUE	120.65*146.05	4.35
	4"	EUE	127.00*152.40	4.82
	4-1/2"	NUE	132.08*155.58	4.89
	4-1/2"	EUE	141.30*158.75	6.05
Casing Coupling	4-1/2"	STC	127.00*158.75	5.23
	4-1/2"	LTC	127.00*177.80	4.15
	4-1/2"	BTC	127.00*225.42	4.55
	5"	STC	141.30*165.10	4.66
	5"	LTC	141.30*196.85	5.75
	5"	BTC	141.30*231.78	5.85
	5-1/2"	STC	153.67*171.45	5.23
	5-1/2"	LTC	153.67*203.20	6.42
	5-1/2"	BTC	153.67*234.95	6.36
	6-5/8"	STC	187.71*184.15	9.12
	6-5/8"	LTC	187.71*222.25	11.34
	6-5/8"	BTC	187.71*244.48	11.01
	7"	STC	194.46*184.15	8.39
	7"	LTC	194.46*228.60	10.83
	7"	BTC	194.46*254.00	10.54
	7-5/8"	STC	215.90*190.50	12.30
	7-5/8"	LTC	215.90*234.95	15.63
	7-5/8"	BTC	215.90*263.52	15.82
	8-5/8"	STC	244.48*196.85	16.23
	8-5/8"	LTC	244.48*254.00	21.67
	8-5/8"	BTC	244.48*269.88	20.86
	9-5/8"	STC	269.88*196.85	18.03
	9-5/8"	LTC	269.88*266.70	25.45
	9-5/8"	BTC	269.88*269.88	23.16
	10-3/4"	STC	298.45*203.20	20.78
	10-3/4"	BTC	298.45*269.88	25.74
	11-3/4'	STC	323.85*203.20	22.64
	11-3/4'	BTC	323.85*269.88	28.03
	13-3/8"	STC	365.12*203.20	25.66
	13-3/8"	BTC	365.12*269.88	31.77
	16"	STC	431.80*228.6	34.91
	16"	BTC	431.80*269.88	40.28
	18-5/8"	STC	508.00*228.60	51.01
	18-5/8"	BTC	508.00*269.88	62.68
	20"	STC	533.40*228.6	43.42
	20"	LTC	533.4*292.10	57.04
	20"	BTC	533.40*269.88	50.10

API Metal Couplings for Oil Well Casings and tubings 0
