S235 EN10025 SSAW welded pile pipes with anti-rust coating

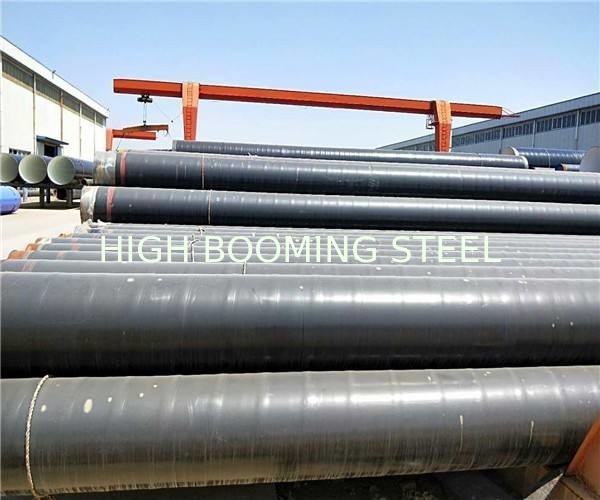

Large Image : S235 EN10025 SSAW welded pile pipes with anti-rust coating

Product Details:

Place of Origin:	CHINA
Brand Name:	Huibo
Certification:	API , ISO

Payment & Shipping Terms:

Minimum Order Quantity:	20MT
Price:	FOB, CIF, CFR
Packaging Details:	in bulk
Delivery Time:	10-15days after we get the down payments
Payment Terms:	TT/LC
Supply Ability:	6500MT/Month

Contact Now

Detailed Product Description

Secondary Or Not:	Non-secondary	Application:	Structure Pipe
Technique:	SSAW	Surface Treatment:	3PE, 2PE, FBE
Special Pipe:	Thin Wall Pipe	Length:	6-20m

S235 EN10025 SSAW welded pile pipes

SSAW steel pipe is a spiral pipe made from high-grade steel: Q235AB, X42, or L290 etc. During the roll forming process, we keep the rolls askew in an adjustable angle from parallel with billet center line while at the same time, welding the seam continuously. The resulting pipe is available in large internal diameters. Prior to welding, the wire electrode and flux will be closely checked for any defects. Before roll forming, the steel sheet or strip has to go through flattening, trimming, and surface cleaning. After welding, the weld seam will receive ultrasonic testing and X-ray inspection.

SSAW steel pipe is one of our core products. It is widely used to transfer oil or gas in the underground pipeline. Upon request, we can apply FBE coating or 3LPE coating to the pipe surface to protect the pipe against corrosion.

Company	Cangzhou High Booming Pipe Equipment Co., Ltd
Product Name	SSAW steel pipe
Outside Diameter	219.1– 2540mm (8″ -100″)
Wall Thickness	6mm – 25.4 mm
Length	6-13m
Steel Grade	Q235, Q345, A53,A252, L245, L290, API 5L GR B, X42 ,X46, X70, S355, S275, S235
End	Plain, Beveled
Surface Treatment	light-oiled, black painting , hot galvanizing, sand blasting, FBE, 2PE, 3PE etc
Packing	in bulk due to big sizes
TPI	SGS, BV, MOODY, CCIC
Details of surface treatment
Single-Layer FBE Coating	SY/T 0315-2005, CAN/CSA Z245.20-2010, DEP 31.40.30.32-Gen-2011, ISO 21809-2-2007, API RP 5L9-2001
Double-Layer FBE Coating	Q/CNPC 38-2002, CAN/CSA Z245.20-2010
2LPE/2LPP Coating	SY/T 0413-2002, GB/T 23257-2009, ISO 21809-1-2009
3LPE/3LPP Coating	SY/T 0413-2002, GB/T 23257-2009, DIN 30670-1991, CAN/CSA Z245.21-2010, ISO 21809-1-2009, NF A49-711-1992, NF A49-710-1988
Insulation Coating	SY/T 0415-1996, CJ/T 114-2000, EN 253-1994
Application	SSAW steel pipe is typically used to transfer gas, oil, or water
Main Markets	South and East Asia, Middle East, Europe and America
Other products	Seamless pipe,OCTG(API 5CT Casing pipe/Coupling/Tubing),ERW/LSAWsteel pipe,Hollow section pipe,Galvanized steel pipe More than 15 years experience in steel industry
