EUE K55 Tubing Pipes from Hebei Borun Petroleum Pipe

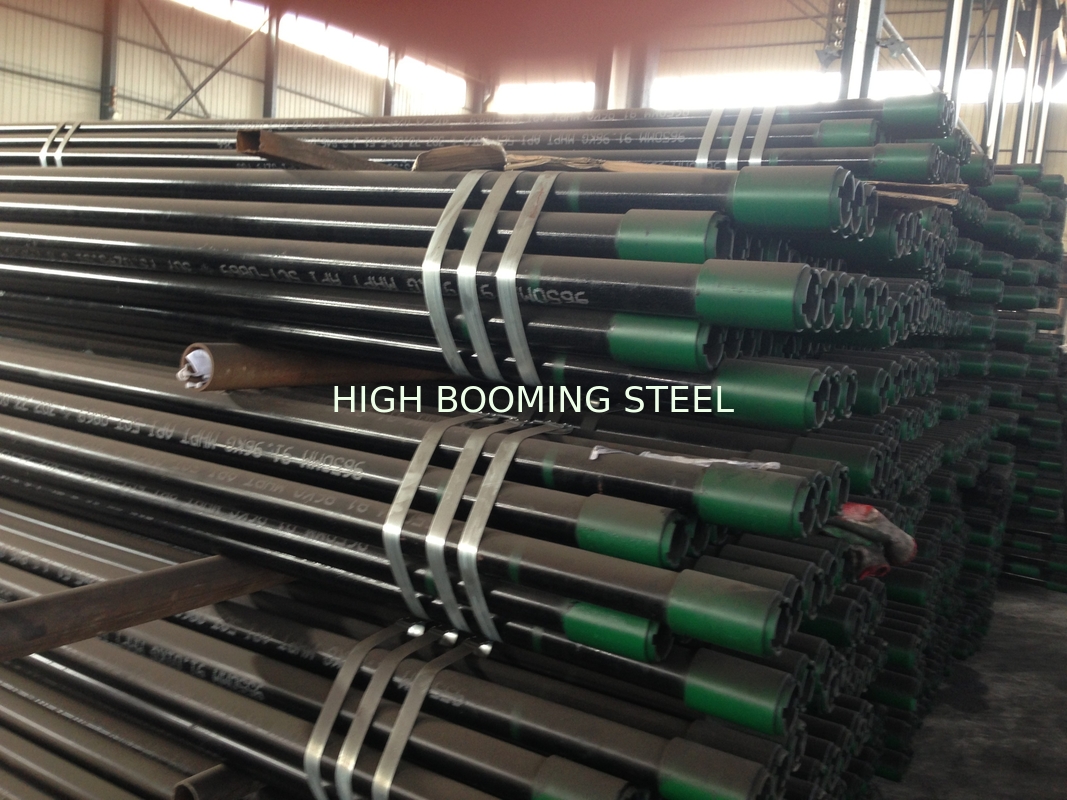

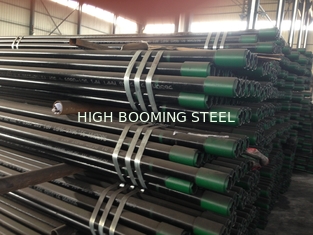

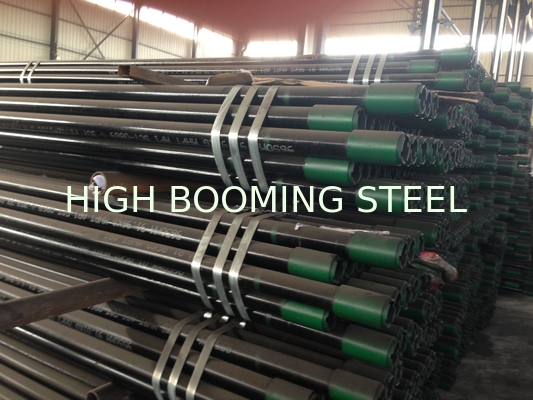

Large Image : EUE K55 Tubing Pipes from Hebei Borun Petroleum Pipe

Product Details:

Place of Origin:	China
Brand Name:	Huibo
Certification:	API 5CT

Payment & Shipping Terms:

Minimum Order Quantity:	20MT
Price:	FOB, CIF,CFR
Packaging Details:	in bundles or in bulk
Delivery Time:	10-15days or according to the real order
Payment Terms:	TT/LC
Supply Ability:	6000MT/Month

Contact Now

Detailed Product Description

Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as "upsetting" is applied to thicken the pipes.

K55 API seamless casing pipe or tubing pipe is similar to J55 . They stay the same in chemical composition and yield strength; however, the tensile strength of K55 is higher than J55 grade. They are almost the same when it comes the price and applications. Generally, customers prefer to K55 when the casing pipes are to be used in water wells.

Product Description

Standard: API 5CT

Steel grade:H40, J55, K55, N80, L80, P110, Q125

OD of Tubing: 2 3/8" - 4 1/2" (60.3mm-114.30mm)

Thread: EUE ( Exteral Upset End), NUE ( Non Upset End)

Length:R1( 6.10-7.32m ), R2( 8.53-9.75m), R3(11.58-12.80m))

TUBING PIPES
STANDARD: API SPEC 5CT
Outside Diameter Specified(mm)	Nominal Weight Threads & Coupling	Steel Grade	WT (mm)	Type of Thread
	Ib/ft			N U	E U
60.32(2 3/8" )	4.70	H, J, L, P	4.83	YES	YES
	5.80	C, N, L, P	6.45	YES	YES
	5.95	L, P	6.45	YES	YES
	7.35	C, L	8.53		YES
	7.45	L, P	8.53		YES
73.02(2 7/8" )	6.40	H, C, N, L, P	5.51	YES
	6.50	H, C, N, L, P	5.51		YES
	7.80	C, N, L, P	7.01	YES
	7.90	C, N, L, P	7.01		YES
	8.60	C, N, L, P	7.82	YES
	8.70	C, N, L, P	7.82		YES
	9.45	L, C	8.64		YES
88.90(3 1/2" )	9.20	H, J, C, N, L, P	6.45	YES
	9.30	H, J, C, N, L, P	6.45		YES
	10.20	H, J, C, N, L	7.34	YES
	12.70	C, N, L, P	9.52	YES	YES
	12.95	L, P	9.52		YES
101.60(4" )	9.50	H, J, C, N, L	5.74	YES
101.60(4" )	11.00	H, J, C, N, L	6.65		YES
114.30(4 1/2" )	12.60	H, J, L, N, C, T	12.75	YES
114.30(4 1/2" )	12.75	H, J, L, N, C, T	12.75		YES
