API 5CT K55 Seamless Tubing Pipes from China Manufacturer

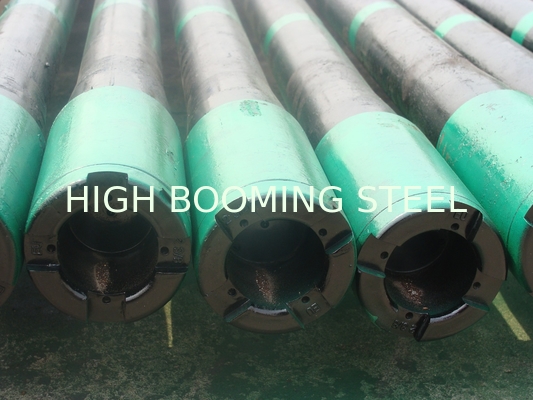

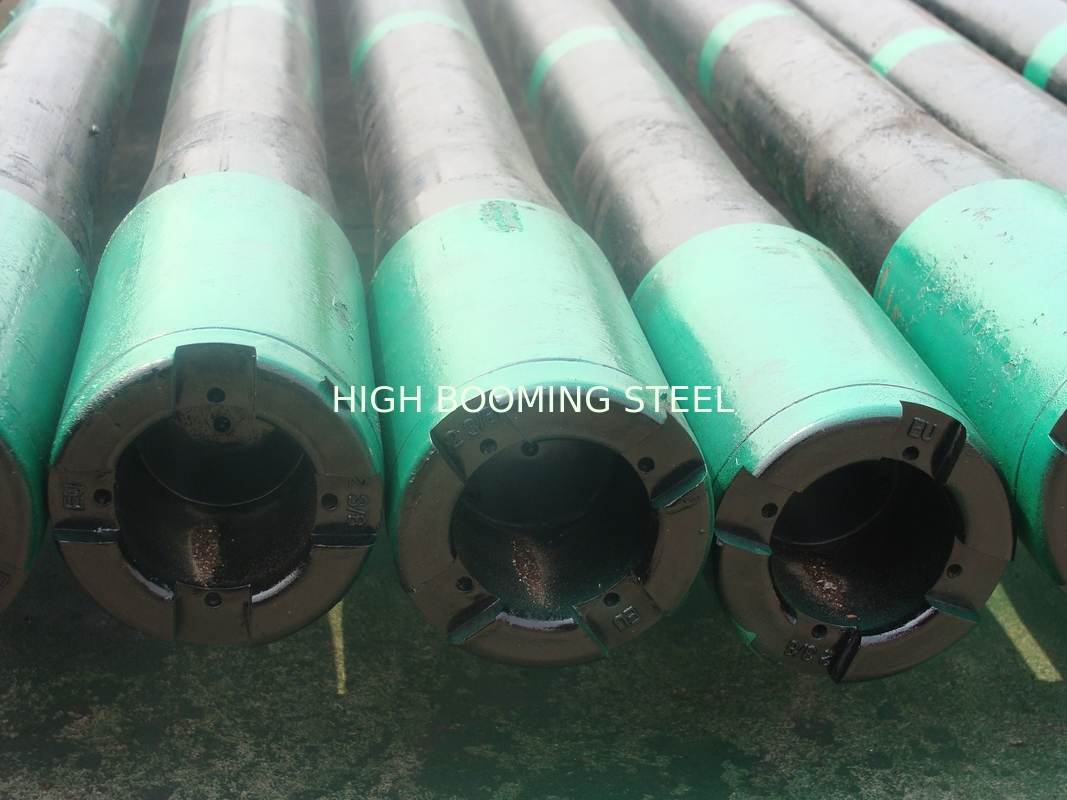

Large Image : API 5CT K55 Seamless Tubing Pipes from China Manufacturer

Product Details:

Place of Origin:	China
Brand Name:	Huibo
Certification:	API 5CT

Payment & Shipping Terms:

Minimum Order Quantity:	20MT
Price:	FOB, CIF, CFR
Packaging Details:	in bundles with steel strips or in bulk as per customer' s request
Delivery Time:	10-15days
Payment Terms:	10-15days
Supply Ability:	6000MT/Month

Contact Now

Detailed Product Description

Secondary Or Not:	Non-secondary	Application:	Oil Pipe
Technique:	Hot Rolled	Special Pipe:	API Pipe
Alloy Or Not:	Is Alloy

Description of Goods:

Oil tubing is a piece of oil drilling equipment, which is widely used in the oil and gas industry.
Our oil tubing is a special-purpose pipe used in the oil, gas and water well to extract the oil, gas and water to the surface. It is made in accordance with API Specification 5CT, 5B and other related standards, authorized to use the API monogram. All sizes of standard, EUE and bimetal anticorrosion tubing in grade J, N, C, L, T, P are available for you to choose from.

K55 API seamless casing pipe or tubing pipe is similar to J55 . They stay the same in chemical composition and yield strength; however, the tensile strength of K55 is higher than J55 grade. They are almost the same when it comes the price and applications. Generally, customers prefer to K55 when the casing pipes are to be used in water wells.

Product Description

Standard: API 5CT
Steel grade:H40, J55, K55, N80, L80, P110, Q125
OD of Tubing: 2 3/8" - 4 1/2" (60.3mm-114.30mm)
Thread: EUE ( Exteral Upset End), NUE ( Non Upset End)
Length:R1( 6.10-7.32m ), R2( 8.53-9.75m), R3(11.58-12.80m))

TUBING PIPES
STANDARD: API SPEC 5CT
Outside Diameter Specified(mm)	Nominal Weight Threads & Coupling	Steel Grade	WT (mm)	Type of Thread
	Ib/ft			N U	E U
60.32(2 3/8" )	4.70	H, J, L, P	4.83	YES	YES
	5.80	C, N, L, P	6.45	YES	YES
	5.95	L, P	6.45	YES	YES
	7.35	C, L	8.53		YES
	7.45	L, P	8.53		YES
73.02(2 7/8" )	6.40	H, C, N, L, P	5.51	YES
	6.50	H, C, N, L, P	5.51		YES
	7.80	C, N, L, P	7.01	YES
	7.90	C, N, L, P	7.01		YES
	8.60	C, N, L, P	7.82	YES
	8.70	C, N, L, P	7.82		YES
	9.45	L, C	8.64		YES
88.90(3 1/2" )	9.20	H, J, C, N, L, P	6.45	YES
	9.30	H, J, C, N, L, P	6.45		YES
	10.20	H, J, C, N, L	7.34	YES
	12.70	C, N, L, P	9.52	YES	YES
	12.95	L, P	9.52		YES
101.60(4" )	9.50	H, J, C, N, L	5.74	YES
101.60(4" )	11.00	H, J, C, N, L	6.65		YES
114.30(4 1/2" )	12.60	H, J, L, N, C, T	12.75	YES
114.30(4 1/2" )	12.75	H, J, L, N, C, T	12.75		YES
