P110 Oi Casing Tube from China manufacturer

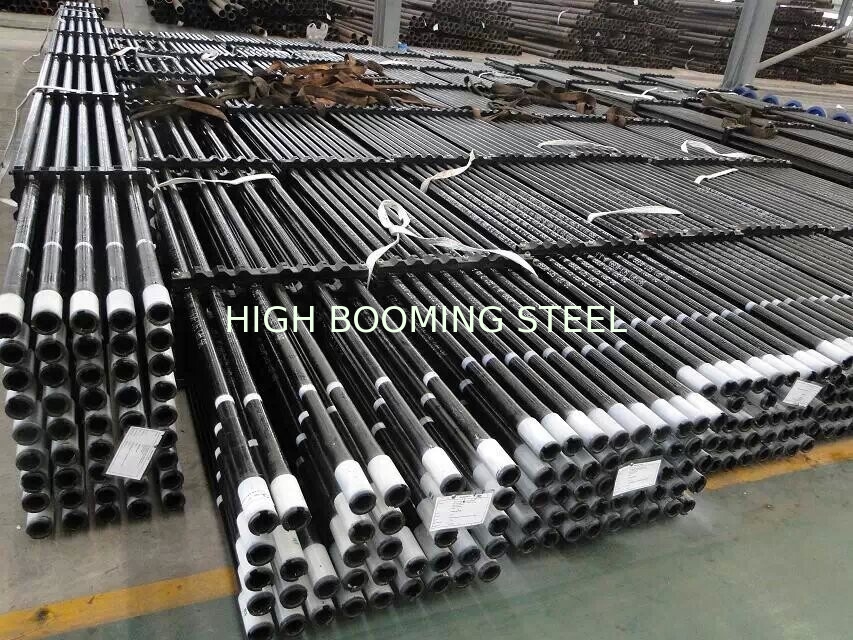

Large Image : P110 Oi Casing Tube from China manufacturer

Product Details:

Place of Origin:	China
Brand Name:	Huibo
Certification:	API 5CT,

Payment & Shipping Terms:

Minimum Order Quantity:	25MT
Price:	FOB,CIF,CFR
Packaging Details:	in bundles or in bulk as per customer's requirements
Delivery Time:	10-15days after we get the down payments
Payment Terms:	TT/LC
Supply Ability:	5000MT/MONTH

Contact Now

Detailed Product Description

Oil tubing is a piece of oil drilling equipment, which is widely used in the oil and gas industry.

Our oil tubing is a special-purpose pipe used in the oil, gas and water well to extract the oil, gas and water to the surface. It is made in accordance with API Specification 5CT, 5B and other related standards, authorized to use the API monogram. All sizes of standard, EUE and bimetal anticorrosion tubing in grade J, N, C, L, T, P are available for you to choose from.

P110 is the higher grade among other steel grades such as J55, K55, N80, L80. As API 5CT standard requires, a white-colored belt should be painted on the finished casing pipes to tell its material. Normally the price of P110 casing pipe is always higher than that of other grades.

Product Description

Standard: API 5CT

Steel grade:H40, J55, K55, N80, L80, P110, Q125

OD of Tubing: 2 3/8" - 4 1/2" (60.3mm-114.30mm)

Thread: EUE ( Exteral Upset End), NUE ( Non Upset End)

Length:R1( 6.10-7.32m ), R2( 8.53-9.75m), R3(11.58-12.80m))

TUBING PIPES
STANDARD: API SPEC 5CT
Outside Diameter Specified(mm)	Nominal Weight Threads & Coupling	Steel Grade	WT (mm)	Type of Thread
	Ib/ft			N U	E U
60.32(2 3/8" )	4.7	H, J, L, P	4.83	YES	YES
	5.8	C, N, L, P	6.45	YES	YES
	5.95	L, P	6.45	YES	YES
	7.35	C, L	8.53		YES
	7.45	L, P	8.53		YES
73.02(2 7/8" )	6.4	H, C, N, L, P	5.51	YES
	6.5	H, C, N, L, P	5.51		YES
	7.8	C, N, L, P	7.01	YES
	7.9	C, N, L, P	7.01		YES
	8.6	C, N, L, P	7.82	YES
	8.7	C, N, L, P	7.82		YES
	9.45	L, C	8.64		YES
88.90(3 1/2" )	9.2	H, J, C, N, L, P	6.45	YES
	9.3	H, J, C, N, L, P	6.45		YES
	10.2	H, J, C, N, L	7.34	YES
	12.7	C, N, L, P	9.52	YES	YES
	12.95	L, P	9.52		YES
101.60(4" )	9.5	H, J, C, N, L	5.74	YES
101.60(4" )	11	H, J, C, N, L	6.65		YES
114.30(4 1/2" )	12.6	H, J, L, N, C, T	12.75	YES
114.30(4 1/2" )	12.75	H, J, L, N, C, T	12.75		YES
