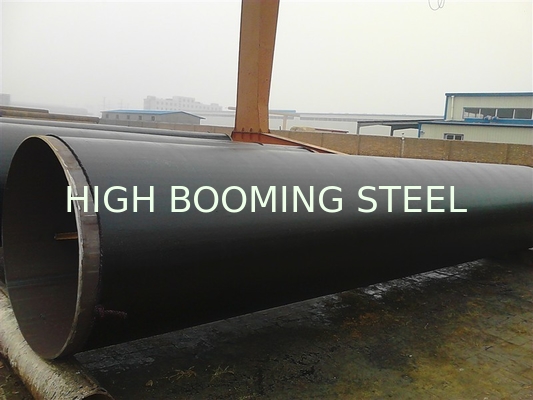

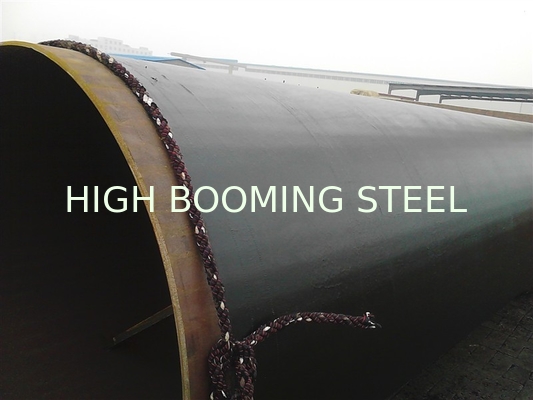

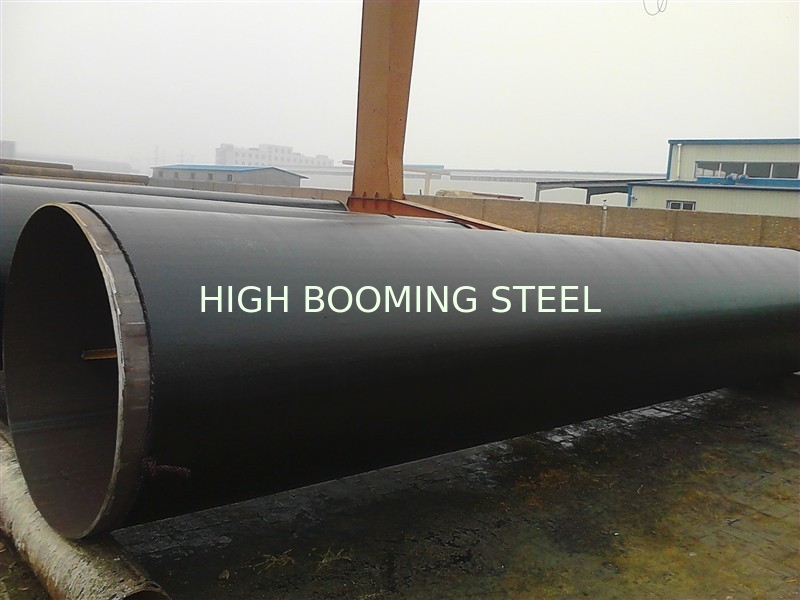

Coal Tar Epoxy Coated ERW Steel tubes for liquid transferring

Large Image : Coal Tar Epoxy Coated ERW Steel tubes for liquid transferring

Product Details:

Place of Origin:	China
Brand Name:	Huibo
Certification:	API,CE,ISO

Payment & Shipping Terms:

Minimum Order Quantity:	20MT
Price:	FOB, CIF, CFR
Packaging Details:	in bulk
Delivery Time:	10-15days after we get the down payments
Payment Terms:	TT/LC
Supply Ability:	6000mt/month

Contact Now

Detailed Product Description

Anti Corrosion:	3PE, 2PE, FBE, Epoxy Resin	Standard:	API 5L, DIN30670

Coated SSAW welded steel pipes China origin

Details:

Company	Hebei Borun Steel Trade Co., Ltd
Products	ERW pipe
Out Diameter	1/2″ -24″ ( 21.3-610mm)
Wall Thickness	2-20mm
Length	5.8m/ 6m/ 11.8m/ 12m or any fixed length as per customer request
Standard	API 5L, ASTM A53, ASTM A252, BS1387, EN10219, EN10210, SY/T5768 -2006, GB/T3091 -2008, GB/T9711 -1, JIS G3444, JIS G3452
Steel Grade	S235, S275, S355, A53, A252, Q195, Q235, Q345, L245, L290, Gr.B, X42-70 etc
End	Plain, Beveled
Surface Treatment	light-oiled, black painting , hot galvanizing, sand blasting, FBE, 2PE, 3PE etc
TPI	SGS, BV, MOODY, CCIC can be arranged before shipment.
Packing	in bundles with steel strips or in bulk as per the loading requirements
Applications	civil building and construction, petrochemical sector, light market, fluid transferring sector, mechanical components
Main Market	South and East Asia, Middle East, Europe and America
Other products	OCTG(API 5CT Casing pipe/Coupling/Tubing),seamless steel pipe,Hollow section pipe,Galvanized steel pipe More than 15 years experience in steel industry !

Anticorrosive processing specific parameters

NominalDiameter Range	Outside diameters Rang(mm)	Coating Type	Coating Layer	Coating thickness
DN100~600	114.3~609.6	3PE Three layers polyethylene	Inside layer: epoxy(Green)
			Mid Layer:adhesive(White)
			Outside layer:polyethylene (Black)
		2PE( Two layers polyethylene	Inside layer: adhesive	2.0~4.5mm
			Outside layer:polythene
DN80~600	88.9~609.6	FBE epoxy	Epoxy	200~400um
		2FBE Two layers epoxy	Inside layer: epoxy(Green)	400~800um
			Outside layer:intensity epoxy(sage green)
DN100~600	114.3~609.6	3PP Three layers polypropylene	Inside layer: epoxy(Green)	2.5~3mm
			Mid Layer:adhesive(White)
