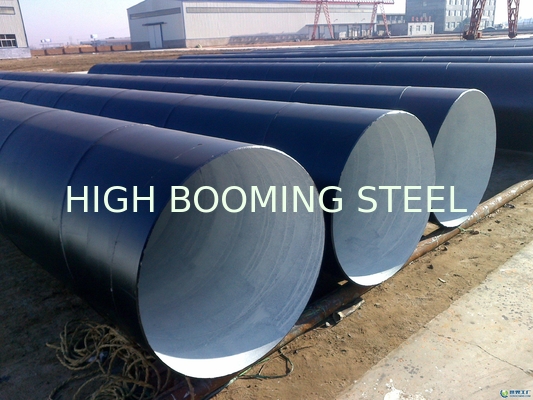

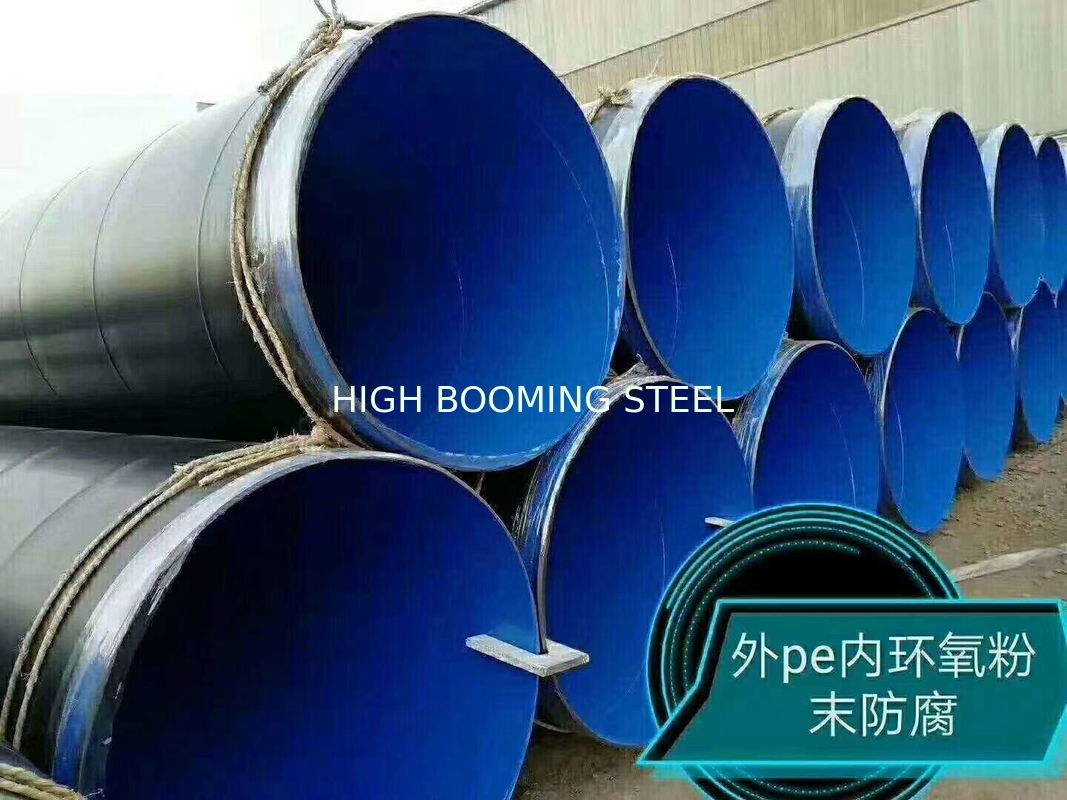

FBE Coated Spiral Welded Steel Pipes
1 Out Diameter: 219.1 mm – 2540mm (8"-100")
2 Wall Thickness: 6mm - 25.4mm Length:6 – 22 m
3 Standard: API 5L, API 5CT, GB/T9711.1, SY5037-2000
4 Steel Material:Q235A, Q235B, Q345, ASTM A53/106, API 5L GR.A/B, L245 L290 X42 X46 X70 X80, S355, S275 etc
5 Processing: Spiral Submerged- Arc Welded Steel Pipe
6 Surface Treatment: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
7 Usage: Used for low pressure liquid delivery, such as water, gas, and oil; construction and piling, chemical industry, power plant, Offshore platform etc.
8 Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test, Exterior Size Inspection, Hydrostatic Test, X-ray Test
Anticorrosive processing specific parameters
|
NominalDiameter Range
|
Outside diameters Rang(mm)
|
Coating Type
|
Coating Layer
|
Coating thickness
|
|
DN100~600
|
114.3~609.6
|
3PE
Three layers polyethylene
|
Inside layer: epoxy(Green)
|
|
|
Mid Layer:adhesive(White)
|
|
Outside layer:polyethylene (Black)
|
|
2PE(
Two layers polyethylene
|
Inside layer: adhesive
|
2.0~4.5mm
|
|
Outside layer:polythene
|
|
DN80~600
|
88.9~609.6
|
FBE
epoxy
|
Epoxy
|
200~400um
|
|
2FBE
Two layers epoxy
|
Inside layer: epoxy(Green)
|
400~800um
|
|
Outside layer:intensity epoxy(sage green)
|
|
DN100~600
|
114.3~609.6
|
3PP
Three layers polypropylene
|
Inside layer: epoxy(Green)
|
2.5~3mm
|
|
Mid Layer:adhesive(White)
|
