GR.B/X42/X60 Seamless Steel Pipes with Eddy Current Testing

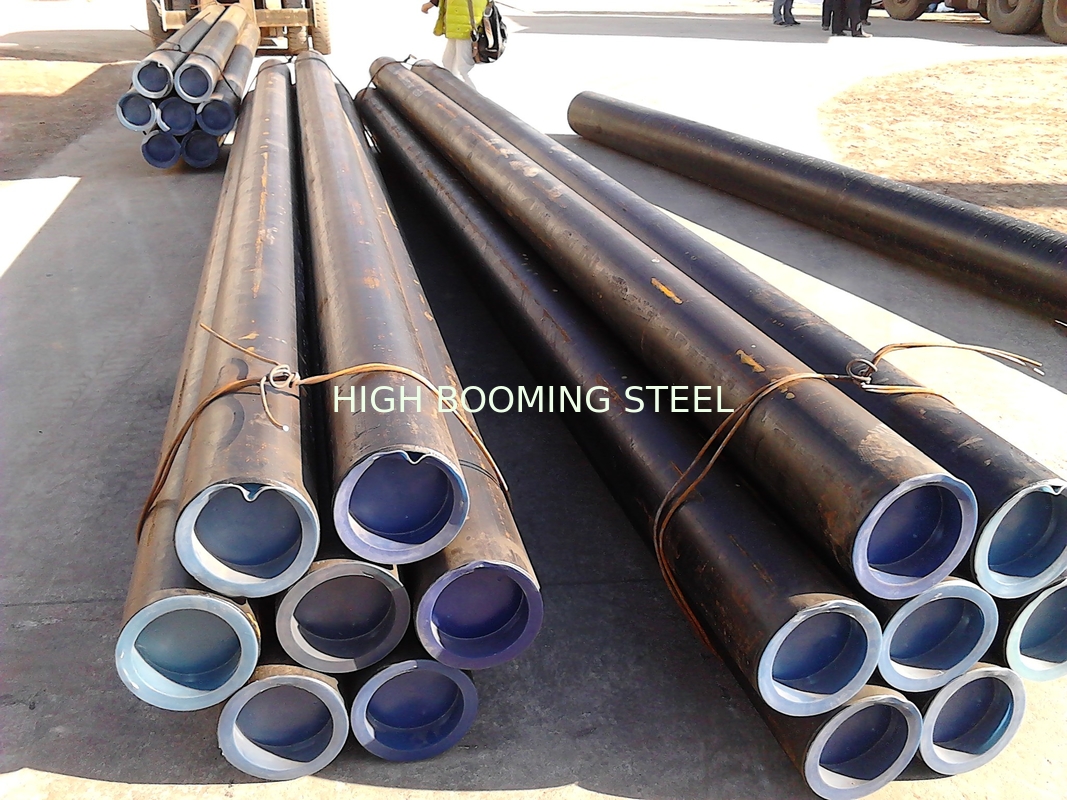

Large Image : GR.B/X42/X60 Seamless Steel Pipes with Eddy Current Testing

Product Details:

Place of Origin:	China
Brand Name:	Huibo
Certification:	API,CE,ISO

Payment & Shipping Terms:

Minimum Order Quantity:	5MT
Price:	FOB,CFR, CIF
Packaging Details:	in bundles with steel strips or in bulk as per customer's requirements
Delivery Time:	10-15days after we get the down payments
Payment Terms:	TT/LC
Supply Ability:	5000MT/MONTH

Contact Now

Detailed Product Description

Secondary Or Not:	Non-secondary	Application:	Fluid Pipe
Technique:	Hot Rolled	Special Pipe:	API Pipe
Alloy Or Not:	Non-alloy

Product Description:

1 Production technology: cold drawn, hot-rolled, hot expanding

2 Standard: API 5L, ASME B36, 10, ASTM A106/A53, GR/G8162/8163

3 Specification range:

OD: 1/2''-24''

WT: SCH10-SCHXXS

4 Materials: 10#, 20#, 45#, 16Mn, GRB, Q345B, X42-56, ST44, ST52 etc.

5 Testing: Eddy current, Hydrostatic, Ultrasonic, Intergranular corrosion etc.

6 Packing: in bundles with steel strips, seaworthy packing as per customer's requirements

7 Application: ASTM A106/53 GRB seamless steel pipe is widely used in petroleum, power gneration, natural gas, coal gas, water and some solid materials etc.

SPEC	DIA		Thickness
	DIA		A25.A.B		X42-X70
	D<60.3	+0.41/-0.40mm	D<73	+20/-12.5%	D≥73	+15/-12.5%
API SPEC 5L	D≥60.3	+0.75/-0.40mm	D≥73	+15/-12.5%	D>73	+15/-12.5%

Chemical Composition:

SPEC	STEELGRADE	C	Mn	P		S
SPEC	STEELGRADE	Max	Max	Min	Max	Max
API SPEC 5L	PSL1 (GB/T9711.2)
	A25II	0.21	0.6		0.03	0.03
	A25III	0.21	0.6	0.45	0.8	0.03
	A	0.22	0.9		0.03	0.03
	B	0.28	1.2		0.03	0.03
	X42	0.28	1.3		0.03	0.03
	X46.X52.X56	0.28	1.4		0.03	0.03
	X60.X65.X70	0.28	1.4		0.03	0.03
	PSL2
	B	0.24	1.2		0.025	0.015
	X42	0.24	1.3		0.025	0.015
	X46.X52.X56	0.24	1.4		0.025	0.015
	X60.X65.X70.X80	0.24	1.4		0.025	0.015

Mechanical Properties:

SPEC	STEEL GRADE	YIELD STRENGTH (MPa)		TENSILESTRENGTH(MPa)		ELONGATION
API SPEC 5L	PSL1 (GB/T9711.2)
	A25	172		310
	A	207		331
	B	241		414
	X42	290		414
	X46	317		434
	X52	359		455
	X56	386		490
	X60	414		517
	X65	448		531
	X70	483		565
	PSL2
		Min	Max	Min	Max
	B	241	448	414	758
	X42	290	496	414	758
	X46	317	524	434	758
	X52	359	531	455	758
	X56	386	544	490	758
	X60	414	565	517	758
	X65	448	600	531	758
	X70	483	621	565	758
	X80	552	690	621	827
