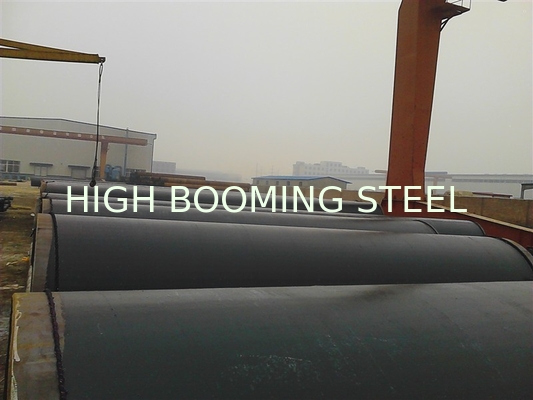

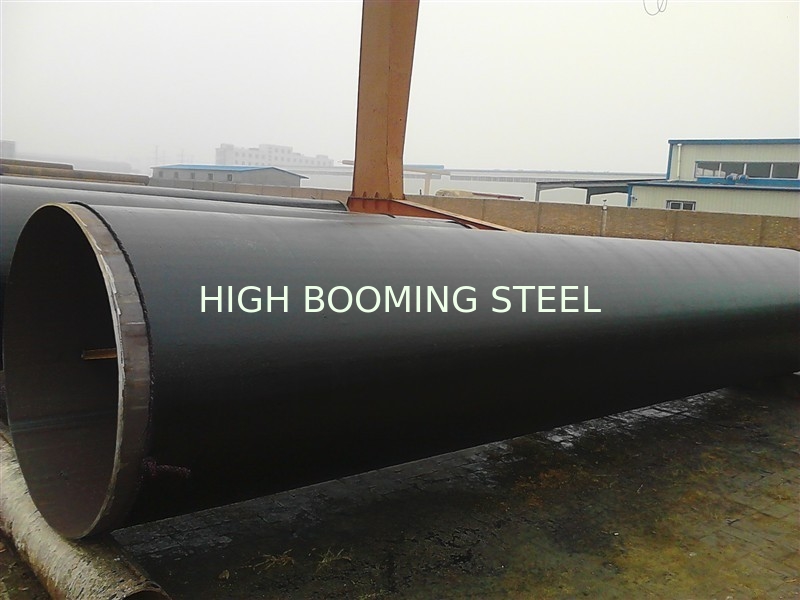

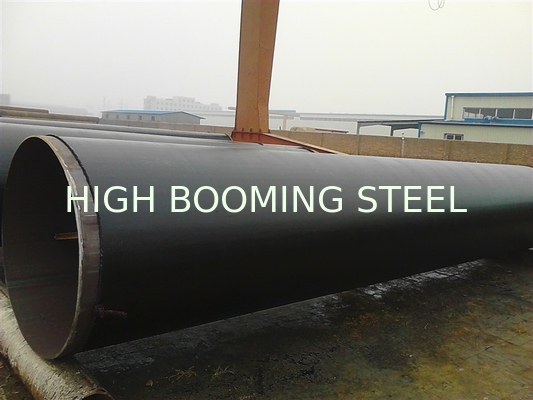

SSAW welded carbon pipes with epoxy resin coating

Large Image : SSAW welded carbon pipes with epoxy resin coating

Product Details:

Place of Origin:	CHINA
Brand Name:	Huibo
Certification:	API 5L, ISO, CE

Payment & Shipping Terms:

Minimum Order Quantity:	20MT
Price:	FOB, CIF, CFR
Packaging Details:	in bulk
Delivery Time:	10-20days or as per the real order
Payment Terms:	TT/LC
Supply Ability:	6500MT/Month

Contact Now

Detailed Product Description

ERW	Standard	JIS ANSI ASME GB DIN BS API
	Grade	Q235(10#) Q345(16Mn) 20# X42-X65 J55
	Out Diameter	127--406mm (5---16 inch)
	Thickness	6--14mm (1/3---3/5 inch)
SSAW	Standard	JIS ANSI ASME GB DIN BS API
	Grade	Q235(10#) Q345(16Mn) 20# X42-X65 J55
	Out Diameter	219--2220mm (8---88 inch)
	Thickness	6--18mm (1/3---4/5 inch)
SEAMLESS	Standard	JIS ANSI ASME GB DIN BS API
	Grade	10# 20# 45# K55 J55 ST37 ST52 X42-X70 Q345(16Mn)
	Out Diameter	139.7--245.5mm (5-1/2---9-3/5 inch)
	Thickness	4--140mm (1-1/2---5-3/5 inch)

API Specification 5L/ISO 3183
mechanical
Steel Grade	Yield Strength	Tensile Strength	Elongation
Steel Grade	Mpa min	Mpa min	A f % min
L175/A25	175(25400)	310(45000)	C
L175P/A25P	175(25401)	310(45001)	C
L210/A	210(30500)	335(48600)	C
L245/B	245(35500)	415(60200)	C
L245R/BR	245(35501)	415(60201)	C
L290/X42	290(42100)	415(60202)	C
L290R/X42R	290(42101)	415(60203)	C
L320/X46	320(46400)	435(63100)	C
L360/X52	360(52200)	460(66700)	C
L390/X56	390(56600)	490(71100)	C
L415/X60	415(60200)	520(75400)	C
L450/X65	450(65300)	535(77600)	C
L485/X70	485(70300)	570(82700)	C

Nominal Diameter Range	Outside diameters Rang(mm)	Coating Type	Coating Layer	Coating thickness
DN100~600	114.3~609.6	3PE Three layers polyethylene	Inside layer: epoxy(Green)
			Mid Layer:adhesive(White)
			Outside layer:polyethylene (Black)
		2PE( Two layers polyethylene	Inside layer: adhesive	2.0~4.5mm
			Outside layer:polythene
DN80~600	88.9~609.6	FBE epoxy	Epoxy	200~400um
		2FBE Two layers epoxy	Inside layer: epoxy(Green)	400~800um
			Outside layer:intensity epoxy(sage green)
DN100~600	114.3~609.6	3PP Three layers polypropylene	Inside layer: epoxy(Green)	2.5~3mm
			Mid Layer:adhesive(White)
