cold formed structural square tube from China

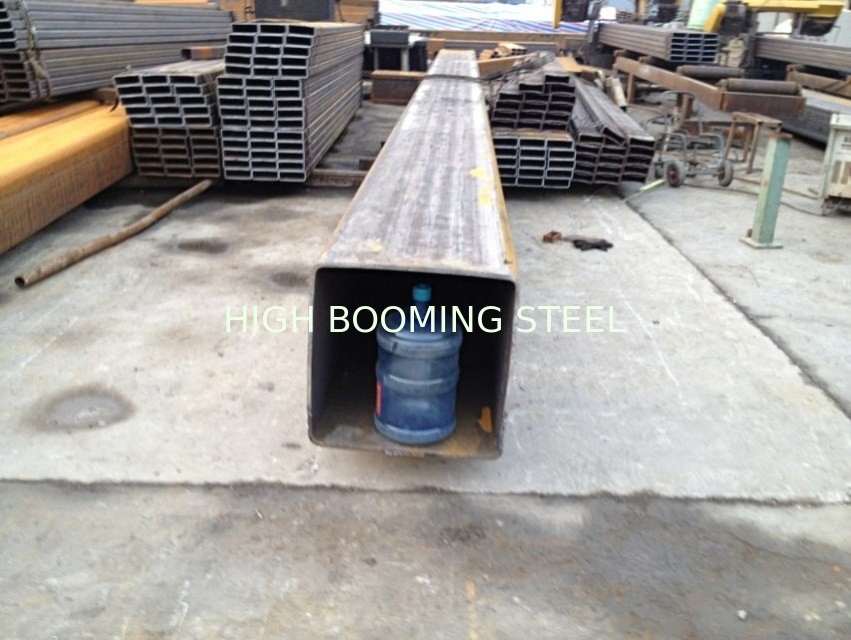

Large Image : cold formed structural square tube from China

Product Details:

Place of Origin:	China
Brand Name:	Huibo
Certification:	CE,CCS, FPC

Payment & Shipping Terms:

Minimum Order Quantity:	20MT
Price:	FOB,CIF,CFR
Packaging Details:	in bundles or in bulk
Delivery Time:	10-15days after we get the down payments
Payment Terms:	TT/LC
Supply Ability:	5000MT/MONTH

Contact Now

Detailed Product Description

Secondary Or Not:	Non-secondary	Application:	Structure Pipe
Technique:	Cold Rolled	Special Pipe:	Thick Wall Pipe
Alloy Or Not:	Non-alloy

Cold formed square tubes are the mostly chosen hollow section for construciton application, such as bridges, shipbuilding, steel roof, steel poles, railways, airport etc.

Specification Range
Normal Size

Dia(mm)	T(mm)	Dia (mm)	T(mm)	Dia (mm)	T(mm)
30*30	2-4	120*120	2-14	250*250	8-25
40*40	2-4	125*125	2-14	255*255	8-25
50*50	2-5	130*130	2-14	258*258	8-25
60*60	2-5	135*135	8-14	260*260	8-25
70*70	2-5	140*140	8-20	280*280	8-25
75*75	2-5	150*150	8-22	300*300	9-25
80*80	2-8	160*160	8-22	350*350	9-25
90*90	2-9	180*180	8-22	360*360	9-25
100*100	2-14	200*200	8-25	400*400	9-25
110*110	2-14	220*220	8-25
115*115	2-14	240*240	8-25

Dia(mm)	T(mm)	Dia(mm)	T(mm)	Dia(mm)	T(mm)
60*20	2-3	80*40	2-6	110*60	5-8
60*30	2-3	90*40	2-6	110*70	5-10
60*40	2-6	90*50	2-6	120*60	5-8
70*20	2-3	100*20	2-4	120*80	5-10
70*30	2-3	100*30	2-4	120*100	5-14
70*40	2-6	100*40	2-4	125*90	5-10
70*50	2-6	100*50	2-6	125*100	5-14
75*45	2-6	100*80	4-9	130*120	5-14
				140*80	5-6,8-10

Big Size

Dia (mm)	T(mm)	Dia (mm)	T(mm)	Dia (mm)	T(mm)
180*100	5-14	300*200	7-25	400*250	7-20
200*100	6-18	300*250	7-25	400*300	7-25
200*150	5-6,8-25	320*200	7-25	420*350	7-25
250*100	5-14	350*100	7-18	450*150	7-18
250*200	6-25	350*200	7-25	450*250	7-22
250*225	6-25	350*250	7-25	500*300	7-25
300*100	7-18	350*300	7-25	600*200	7-18
300*150	7-18	400*200	7-18	600*400	8-25
